| 用途 |
|
| 特點 |
|

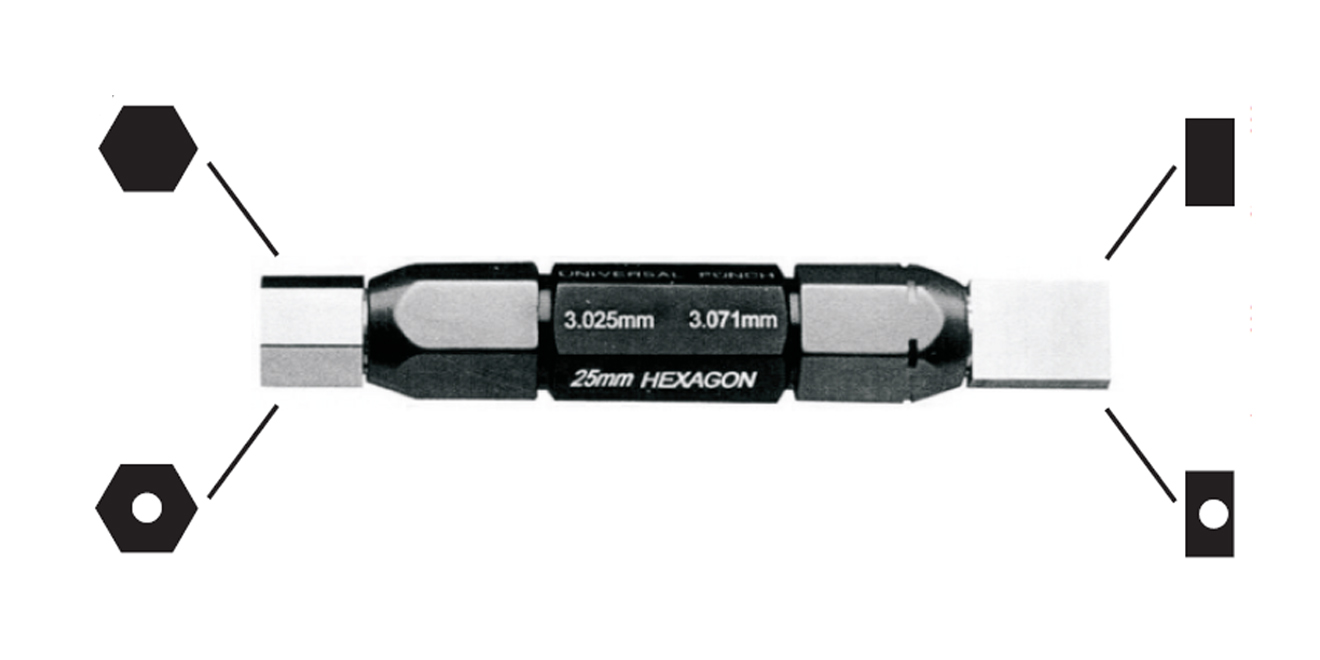

| 內六角螺帽通止規 | 尺寸 | 參考標準 | 校證報告 | 測頭是否帶孔 |
|---|---|---|---|---|
| 9076-0.7 | 0.7 |
ASME ANS ISO JIS DIN BS AND GB |
可提供 | 可以選擇 |
| 9076-0.9 | 0.9 | |||
| 9076-1.3 | 1.3 | |||
| 9076-1.5 | 1.5 | |||
| 9076-1.6 | 1.6 | |||
| 9076-2.0 | 2 | |||
| 9076-2.5 | 2.5 | |||
| 9076-3.0 | 3 | |||
| 9076-4.0 | 4 | |||
| 9076-5.0 | 5 | |||
| 9076-6.0 | 6 | |||
| 9076-8.0 | 8 | |||
| 9076-10 | 10 | |||
| 9076-12 | 12 | |||
| 9076-14 | 14 | |||
| 9076-16 | 16 | |||
| 9076-17 | 17 | |||
| 9076-19 | 19 | |||
| 9076-22 | 22 | |||
| 9076-27 | 27 |
不同標準對應的不同螺帽大小
| 型號 | 尺寸 |
ISO4762 (DIN912) JIS1176 |
ISO4762 (DIN911) JIS1194 |
ISO4026/4028 (DIN916/913) JIS1177 |
|---|---|---|---|---|
| 9076-0.7 | 0.7 | M1.4 | 無 | M1.4, M1.6, M1.8,M2,M2.5 |
| 9076-0.9 | 0.9 | |||
| 9076-1.3 | 1.3 | |||
| 9076-1.5 | 1.5 | M1.6, M2, M2.5, M3 | M3,M4 | M3,M4,M5 |
| 9076-1.6 | 1.6 | |||
| 9076-2.0 | 2 | |||
| 9076-2.5 | 2.5 | |||
| 9076-3.0 | 3 | M3,M4,M5 | M5,M6,M8 | M6,M8,M10 |
| 9076-4.0 | 4 | |||
| 9076-5.0 | 5 | |||
| 9076-6.0 | 6 | M8,M10,M12 | M10,M12,M14,M16 | M12,M14,M16,M20 |
| 9076-8.0 | 8 | |||
| 9076-10 | 10 | |||
| 9076-12 | 12 | M14,M16,M18 | M18,M20,M22,M24 | M22,M24 |
| 9076-14 | 14 | |||
| 9076-16 | 16 | |||
| 9076-17 | 17 | M22,M24,M27 M30,M33 | 無 | 無 |
| 9076-19 | 19 | |||
| 9076-22 | 22 | |||
| 9076-27 | 27 |
